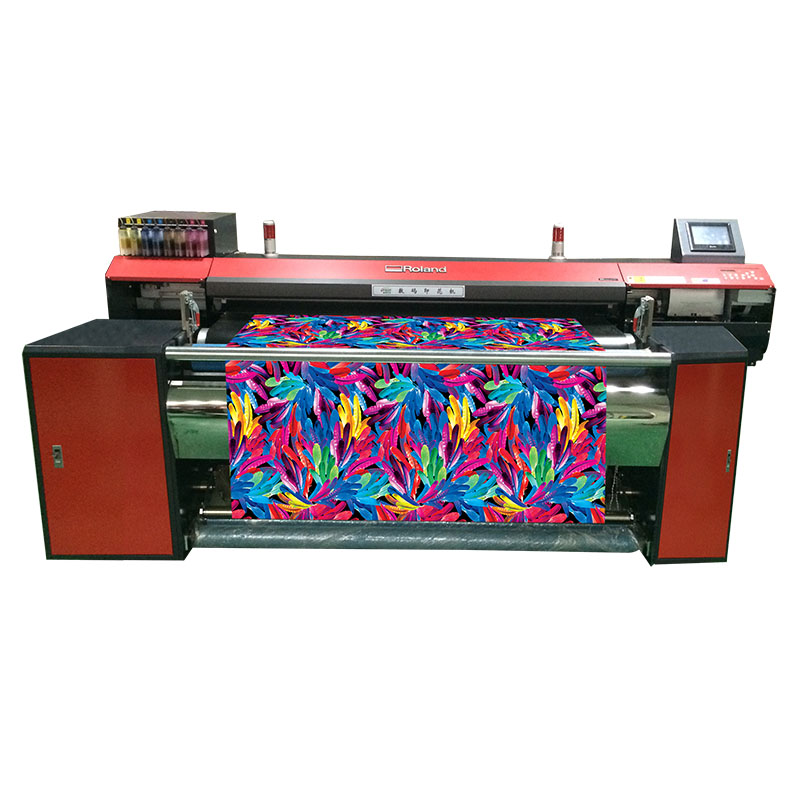

SD1800-FH740 导带式数码印花机
SD1800-FH740 Belt Type Digital Textile Printer
技术参数
Technical parameters
印花方式Print mode |
二个DX7微压电式喷头Two pieces of DX7 Micro piezo spray head |
印花分辨率 Print resolution |
360/540/720/1440dpi |
印花速度 Print speed
|
540*360dpi 27sqm/h |
360*720dpi 18sqm/h |
|
540*720dpi 14sqm/h |
|
720*720dpi 9.5sqm/h |
|
最大印花门幅 Max. print width |
1800mm |
最大织物门幅Max.fabric width |
1840mm |
墨盒容量 Ink box volume |
220cc+5cc |
颜色 Color
|
6 colors :C M Y K Lc Lm |
8colors: C M Y K Lc Lm O G |
|
4colors: C M Y K |
|
墨水类型 Ink type |
活性、酸性、分散、涂料墨水兼容 Acidity, reactive, disperse, coating ink all compatibility |
功耗 Consumption |
待机≤100W,打印1200W 加热2组×1000W 1组×2000W Stand by≤100w , Print1200w heating 2 group x1000w , 1 group x2000 |
电源Power |
AC 220V ±10% , 15A 50HZ |
工作环境 Environment |
温度18-30℃ 相对湿度35-80%(不结露) Temperature 18-30℃, relative humidity 35-80%(non condensing) |
设备尺寸Overall size |
3300(L)×1800(W)×1400(H)mm |
重量 Weight |
1500kg |
