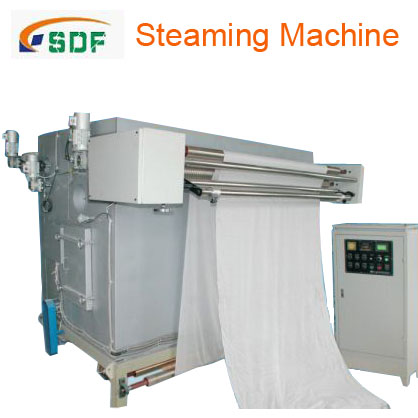

SDZ 系列连续式蒸箱
SDZ series Continuous type Steaming Machine
本机适用于各种天然纤维、合成纤维、化学纤维及其混纺的织物、针织物、无纺织物印花后的蒸化固色和涂料印花后的焙烘，适用于各种染料，织物克重范围50~450g/㎡.特别适用于数码印花、转移印花和小批量打样用。
使用染料：活性、酸性染料
Suitable for woven, knitted, non-woven fabrics of natural fiber, synthetic fiber, chemical fiber, blending being ageing fixation& curing after printing.
Suitable for varies dyes staff, fabric weight range 50-450g/sqm.
Specially suitable for digital print, transfer print and small batch sample print.
Suitable dye staff: reactive dye ink
设备特点：
1）进出布热气帘式气封装置
锁住湿度和温度，湿度饱和的情况下，气封口排气量大大减少，比常规型号节约20%的能耗，同时湿度大大提高，蒸化颜色更加鲜艳。
2）循环风机变频可调
根据不同布种和克重，设定循环强度，避免产生漂移、沾色和掉杆。
3）底部给湿水槽，蒸汽直接加热。
通过调节蒸汽加热阀门控制湿度，流量计实时显示，直观准确，湿度调节范围大。
Machine Character:
1) Feeding gas seal device
Under keeping the humidity , temperature and humidity saturation, sealed gas displacement greatly reduced. Saving 20% energy consumption than conventional model. Humidity greatly improved at the same time,Steaming color more bright-coloured.
2) The circulation fan variable frequency is adjustable
According to different cloth and gram weight, set circulation strength, avoid to produce drift, the generalization and fall rod.
3) To wet at the bottom of the sink, direct steam heating.
By adjusting the steam heating valve control humidity, real-time display of the flow meter, intuitive and accurate, and humidity adjusting range is big.
主要技术规格、参数：
1. 门幅：2200mm（1800mm~3600mm皆可选）
2. 容布量：20M,50M,70M,100M,150M
3. 机械车速：10m/min
4. 环长：1.25m（无极可调）
5. 蒸化时间：5min-20min 可调
6. 蒸化温度：102℃ 直接蒸汽压力≥0.3Mpa
7. 整机总功率：7.6KW
8. 蒸汽耗量：150kg~200kg/小时
9. 加热方式：蒸汽或者电加热
Main Specification:
1. Breadth: 2200mm(1800~3600mm option)
2. Fabric capacity: 20/50/70/100m/150m option
3. Max. machine speed: 10m/min
4. Max. lop length: 1.25m(stepless adjustable)
5. Ageing time: 5min-20min adjustable
6. High temperature thermal source: high temperature oil, Steam
7. Ageing temperature: 102℃ Direct steam pressure≥0.3Mpa
8. Total Power: 7.6KW
9. Steam consumption:150kg~200kg/h
10. Heating method:steaming or electric.
