Rotary Screen High Press Washing Machine
圆网印花镍网高压清洗机
Rotary screen high press washing machine
l steel beams and steel structure lathe bed device has good accuracy and stability
l lathe bed and water tank using fission type structure, reduce water sand, and the original mechanical parts for the moving objects
l conduction band transmission gear rack and no clearance straight line
l bi-directional single cylinder reciprocating column type turbo configuration
l supercharger main high pressure parts (high pressure cylinder, high pressure ceramic rod, high pressure sealing, low pressure sealing, low pressure two-way valve, water switch maintenance packages, one-way valve repair package, the import of American Accostream)
l the United States imported high pressure pipe
l single type water filter system;(5micron,1micron,0.45micron series)
l manual pressure regulating function
l overpressure automatic stop and under-voltage protection function automatically
l triple security protected mode
高压印花镍网高压清洗机:
l 设备用钢结构横梁及钢结构床身设备具有极好的精度和稳定性
l 床身与水箱采用分体式结构,减轻水砂及原加工件对运动物件的损伤
l 采用齿轮齿条和无间隙直线导带传动
l 单缸双向往复柱窜式增压配置
l 增压器主要配件(高压缸,高压陶瓷活塞杆,高压密封,低压密封,低压双向阀体,水开关维修包,单向阀维修包,进口美国Accostream)
l 美国进口高压管
l 单排式滤水系统(5micron,1micron,0.45micron串联)
l 手动调压功能
l 超压自动停机和欠压自动保护功能
l 三重安全保护
Technical Parameters技术参数
名称 Items |
SW2200 |
SW3200 |
SW3500 |
适用圆网长度 Suitable for screen length |
≤2200mm |
≤3200mm |
≤3500mm |
适用圆网周长 suitable for screen repeat |
≤640mm |
||
清洗时间 Cleaning time |
5-25min
|
||
清洗最高水压 Clean-water pressure |
280mpa |
||
清洗最大流量 Max of clean-water |
4.4L/min |
||
每天产量 (3000*640mm 规格圆网) Per day production(3000*640mm standard screen) |
50~60支 50-60pcs |
||
每支网耗电量 (3000*640mm 规格圆网) Power consumption per screen(3000*640mm standard screen) |
12.79度 12.79 degree |
||
每支网耗水量 (3000*640mm 规格圆网) Water consumption per screen(3000*640mm standard screen) |
0.09立方 0.09cube |
||
系统功率 System power |
32KW |
||
电源 Power supply |
380v AC; 50HZ, 3-phase |
||
进气气压 Air flow pressure |
≥0.4MPa |
||
进水水压 Inflow pressure |
≥3Kg/cm2 |
||
工作环境 Environment |
5-40℃ |
||
安装尺寸(长宽高) Installation size(LWH) |
高压机部分:2510*760*1640mm 清洗机部分:4460*800*1800mm 清洗机侧门打开时的宽度:3500mm High pressure machine:2510*760*1640mm Cleaning machine:4460*800*1800mm The side door width of washing machine:3500mm |

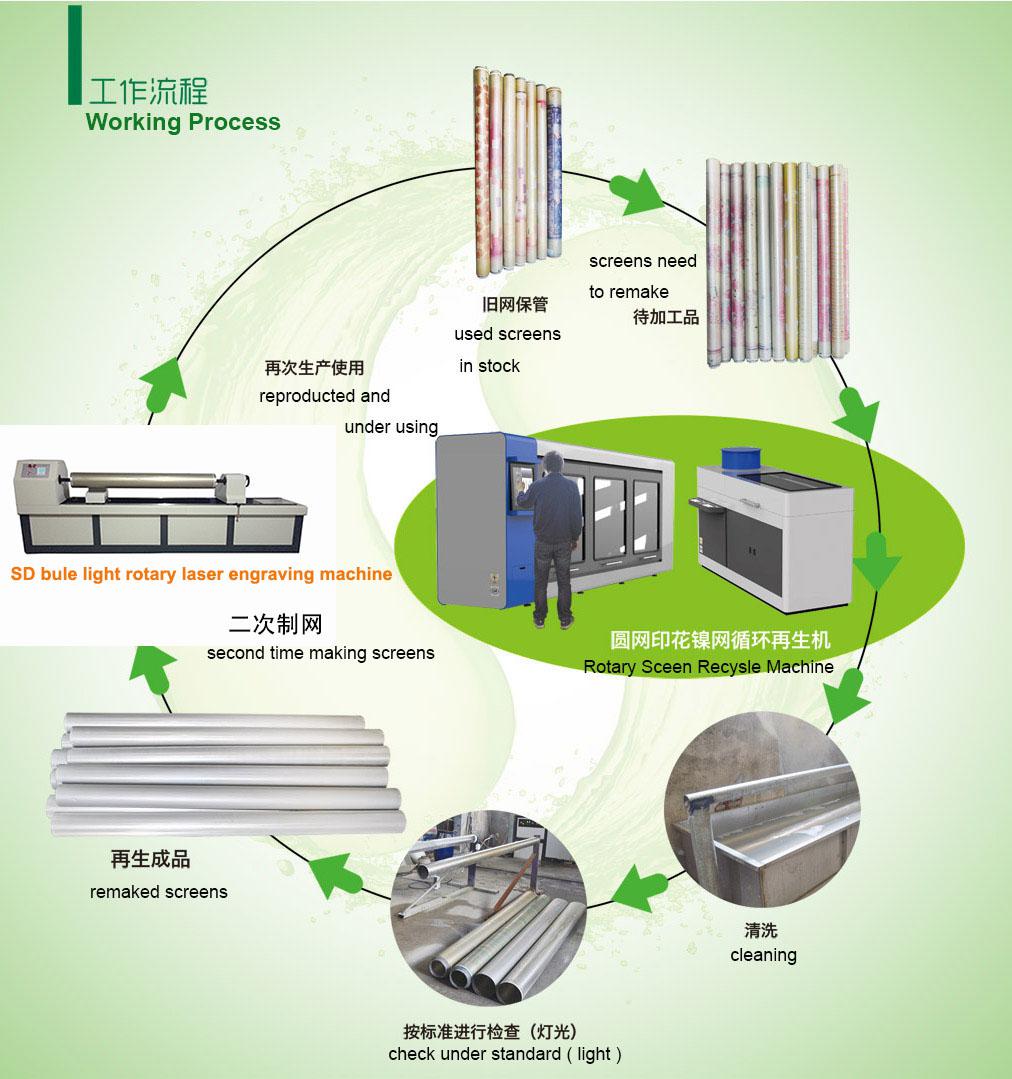

Emissions of filtered water precipitation, non-toxic harmless solid waste, water can be recycled
One recycle machine can match two rotary laser engraving machine, You can recover the cost within 3 months.
Remake the screens in 5~10 times!!
排放的水经过过滤沉淀,可以循环利用.
一台镍网循环再生机可以为二台印花圆网机配套服务, 三个月内就可以收回设备成本.
镍网重复利用5~10次!!
Advantages:
Environment Protection : non-toxic, harmless, no waste water and no pollution.
Energy consumption advantages: save electricity and water .
Maintenance Instructions: one year free warranty, free training courses and installation.
Usage Tip: for remarked screens coating, we recommend our SD-105ZS coating glue. Suitable price and good quality.
Value:
1. Save $50 for each screens, recycle making 50~60 pcs per day, everyday make profit of $2500~3000, each year match more than 830000USD..
2. The screen can be remaking 5~10 times.
3. Reduce the fund of purchasing screens.
4. The occupation area of screen stocking can be decreased.
优势:
环保无忧: 无毒,无害,无污水,无污染.
能耗优势: 省电省水.
维护说明: 提供生产使用培训,设备1年内免费保修.
使用提示: 再生镍网的上胶,建议使用本公司专门研制的SD-105ZS, 为再生网使用.价位合理,低于市场价格.
镍网循环机再生机创造的价值:
1、通过镍网循环再生机加工翻新,翻新网每支节省近300元.镍网循环再生机每天生产近50~60支,每天可创利近1.5万元~1.8万元,全年创收500万元以上.
2、可以重复循环翻新5~10次.
3、减少购网专用资金.
4、减少圆网存储仓库面积.
